Device Type:sensor
Electrical Standard:global
Board:esp32
Difficulty:Comes with ESPhome (1/5)
Project URL:https://github.com/smarthomeshop/waterflowkit
SmartHomeShopIO WaterFlowKit
Description
The WaterFlowKit is an ESPHome-based water flow monitor for supported pulse-based flow sensors. It measures real-time flow rate, total water consumption, and water temperature, and also includes onboard temperature and humidity sensing with the HDC1080.
It is designed for fully local use with ESPHome and Home Assistant, with onboarding through captive portal, Improv BLE, or Improv Serial where supported, and supports HTTP OTA firmware updates.
Features
- Real-time flow rate and total consumption
- Water temperature monitoring per flow input
- Built-in HDC1080 temperature and humidity sensing
- Support for multiple YF-series pulse flow sensors with calibration options
- Wi-Fi and Ethernet firmware variants depending on hardware revision
- HTTP OTA firmware update support
- Fully local and open source
Specifications
- MCU:
- V1: ESP32
- V2: ESP32-C6
- Flow inputs:
- V1: 2
- V2: 4
- Connectivity:
- V1: Wi-Fi
- V2: Wi-Fi and Ethernet
- Sensors: HDC1080 temperature and humidity
- Firmware: ESPHome
Variants
- WaterFlowKit V1 WiFi — ESP32 based hardware with 2 flow inputs
- WaterFlowKit V2 WiFi — ESP32-C6 based hardware with 4 flow inputs
- WaterFlowKit V2 Ethernet — ESP32-C6 based hardware with wired Ethernet support
Supported Flow Sensors
- YF-B1 / YF-B7
- YF-B5 / YF-B6
- YF-B10
- YF-DN40-S
- YF-DN50-S
Quickstart
- Connect power and wire the flow sensors.
- Flash the desired firmware with the web flasher or ESPHome.
- Onboard the device using the fallback hotspot, Improv BLE, or Improv Serial where supported.
- Adopt the device in Home Assistant / ESPHome.
- Select the connected flow sensor type and calibrate if needed.
Please check our full documentation and Quick Start Guide and the product page for supported flow sensor details.
Links
Product Images

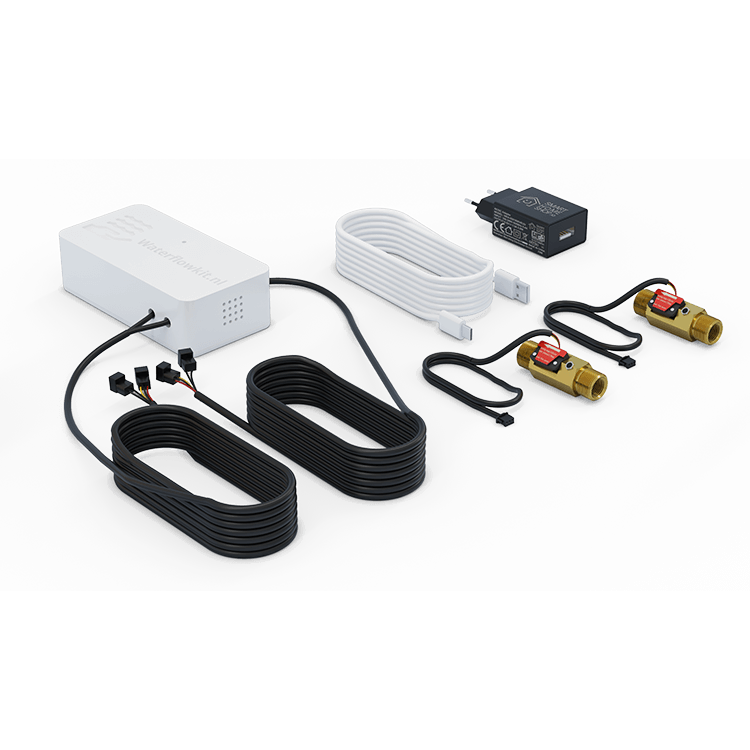

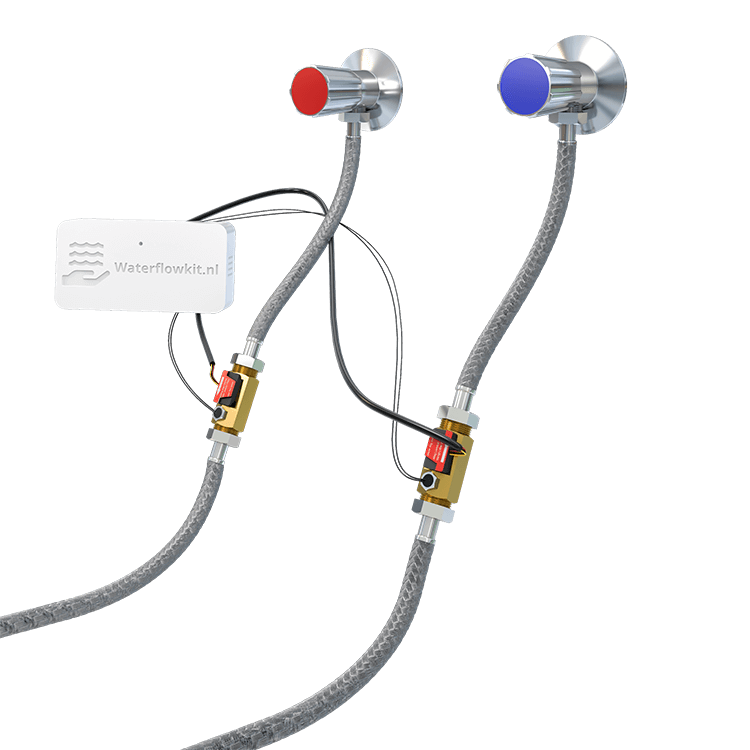

| Product view | In the box |
|---|---|
|  |
